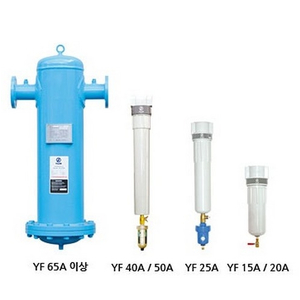

BỘ LỌC KHÍ MICOS

(1 đánh giá)

Mã sản phẩm : JF SERIES

Xuất xứ : JUJIN_KOREA

Bảo hành : 12 THÁNG

BỘ LỌC KHÍ MICOS

Call: 0985-843-778

Chi tiết

Fully filtered solids and water, remove carbide materials and molecules. It can be applied to be high quality cartridge by computational bolt.

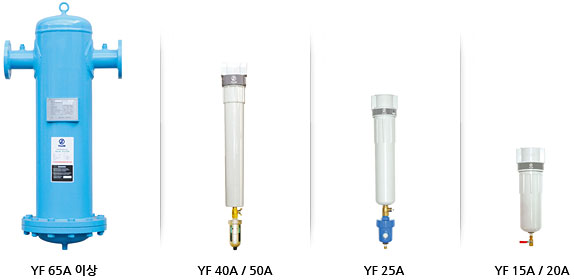

Air Filters(YF Series)

The maximum flow rate MAIN•PRE FILTER pressure 0.3kgf/㎡, LINE 0.1㎛, COAELSCENT 0.01㎛, when ADSORBENT FILTER is0.2 - 0.4 kgf/㎡ , pressure is on 7kgf/㎡ STD. Filtered air flow is N㎡/min.
FILTER 200A over is made to order..
SUS FILTER is made to order.
65A, 80A, 100A FILTER leg attachment is made to order. (150A over is on basis.)
65A over Korea Occupational Safety Authority approved.

TECHNICAL DATA(YF-15A ~ YF-200A)


FILTER TYPE	MAIN FILTER	PRE FILTER	LINE FILTER	COALESCENT FILTER	ADSORBENT FILTER	ELEMENT	DIMENSION		WEIGHT
	370	320	310	130	150	Q'TY	Width	Height	(kg)
	40㎛	5㎛	1㎛	0.01㎛	0.001PPM
	Nm³/min	Nm³/min	Nm³/min	Nm³/min	Nm³/min
YF-15A	2.2	108	1.2	1	1	1	105	360	2
YF-20A	5.7	3.5	2.8	1.9	1.9	1	105	360	2
YF-25A	8	5.7	5	3.4	3.4	1	105	600	3
YF-40A	17	14	11	10	10	1	150	890	6
YF-50A	29	25	22	14	14	1	150	1,060	8
YF-65A	58	49	48	27	27	2	550	1,348	59
YF-80A	88	73	72	42	42	3	550	1,348	64
YF-100A	139	120	110	70	70	5	650	1,426	113
YF-150A	282	221	176	112	112	8	750	1,936	163
YF-200A	447	331	308	196	196	11	830	2,048	173

Filter Element


Filter Element No.	Filteration Particle	Dimension				Media Grade No.
Filter Element No.	Filteration Particle	"A"	"B"	"C"	"D"	Media Grade No.
YPE-25A-310	1㎛	63	395	340	55	10C15-130
YPE-25A-130	0.01㎛	63	395	340	55	4C15-130
YPE-25A-150	1ppm	63	395	340	55	A15-130
YPE-40A-310	1㎛	72	570	490	80	10C25-262
YPE-40A-130	0.01㎛	72	570	490	80	4C25-262
YPE-25A-150	1ppm	72	570	490	90	A25-262
YPE-25A-310	1㎛	84	755	675	90	10C25-262
YPE-25A-130	0.01㎛	84	755	675	90	4C25-262
YPE-25A-150	1ppm	84	755	675	90	A25-262

- AS above specification based on as followed.
[1] Around temperature : 20℃ [2] pressure drop rate : within 3%
- YPE Type : Import, ELEMENT(option)

Element


MODEL	MAIN / PRE (YFE-370, 320)	LINE (YFE-310)	COALESCENT (YFE-130)	ADSORBENT (YFE-150)
Structure and Materials
maintenance	Use mild detergent	Cartridges exchange	Cartridges exchange	Cartridges exchange
Filter	Removal solid body over 40㎛, 5㎛(100%)	Removal solid body over 1㎛(100%)	Removal solid body over 0.01㎛(100%)	Removal solid body over 0.001㎛(100%)
Materials	Sintered resin	HEPA	HEPA / Polyester	HEPA / Polyester / Activated carbon paper
Installation Site	MAIN LINE/ Refrigerated Air Dryer or Filter(YFE-310, 130, 150) be installed in front.. It should be used for Preventing condensate flows.	Installed in the pipe end portion or desiccant dryer, Filter (YFE-130, 150) be installed in front, in order to extend the life cycle of the advanced filter	Install in area of oil and moisture to be removed, if you set up in front of desiccant dryer, increase the absorbent life.	As a filter for installation in the final end of the pipe line to remove the solid matter than 0.001ppm, install a site of clean compressed air needed.
Repair and replacement	Element should be cleaned, when foreclosure is 0.7㎏/㎠.. and the mild detergent and gasoline, paint thinner should not be used	When the differential pressure 0.5㎏ / ㎠ over, disassemble the filter and replace the cartridge in the filter with a new one
