VAN XẢ NƯỚC CAO ÁP JORC FLUIDRAIN

(1 đánh giá)

Mã sản phẩm : 1603

Xuất xứ : JORC-HÀ LAN

Bảo hành : 06 Tháng

VAN XẢ NƯỚC TỰ ĐỘNG JORC (230V) Model: FLUIDRAIN Mã số sản phẩm: 1603 Xuất xứ : JORC - HÀ LAN Bảo hành : 06 tháng Kết nối ren: 1/2'' (21mm) Áp làm việc max: 16 bar Điện áp: 230VThời gian nghỉ (OFF time): 0,5 – 45 phút Thời gian xả (ON time): 0,5 - 10 giây Call: 0985-459-559 www.thietbikhinenkorea.com

Call: 0985-843-778

Chi tiết

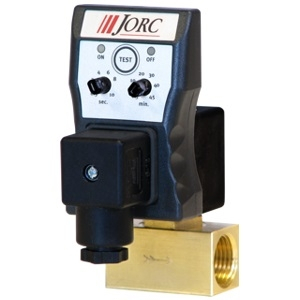

The FLUIDRAIN Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.

The FLUIDRAIN is designed to remove condensate from compressors, compressed air dryers and receivers up to any size, type or manufacturer.

The FLUIDRAIN offers true installation simplicity and it is recognised as the most reliable and best performing condensate drain worldwide. The large orifice in the direct acting valve, combined with its sophisticated timer module ensure many years of trouble-free draining of condensate providing minimum service work is carried out.

SPECIFICATIONS

MAXIMUM COMPRESSOR CAPACITY	Any size
PRESSURE RANGE	0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S)
SUPPLY VOLTAGE OPTIONS	12 - 380 VAC/DC 50/60Hz. (please indicate)
MEDIUM TEMPERATURE	1 - 55 °C
AMBIENT TEMPERATURE	1 - 55 °C
TIMER CYCLE RANGE (ON / OFF)	0.5 - 10 seconds / 0.5 - 45 minutes
TIMER PCB	SMD technology, ensuring consistency in production
TIMER CYCLE INDICATION	Bright LED illumination
TEST FEATURE	Yes
VALVE TYPE	2/2 way, direct acting
VALVE ORIFICE	4.5 mm
VALVE SEALS	FPM
INLET/OUTLET CONNECTIONS	1/8″, 1/4″, 3/8″, 1/2″ (BSP or NPT)
INLET CONNECTION HEIGHT	1 cm
SERVICEABLE VALVE	Yes
VALVE HOUSING MATERIAL	Brass (Stainless steel available)
POWER CONNECTION	DIN 43650-A
ENVIRONMENTAL PROTECTION	IP65 (NEMA4)
